Most OCR tutorials stop at "call an API and get some text back." This isn't that.

Instead, we're building a production-grade, self-scaling Visual Document Understanding pipeline, deployed for real on Kubernetes (AKS or GKE), that goes far beyond flat text extraction: it reasons about charts, tables, and layout the way a human reader would — powered by a Small Language Model (Qwen 3.5) instead of a bloated frontier model.

By the end of this course, you'll have your own event-driven OCR system capable of:

• 🧠 Understanding documents, not just transcribing them — charts, tables, handwriting, and contextual reasoning via Qwen 3.5 (4B)
• ⚡ Serving generative OCR at 1.86 pages/second with vLLM's continuous batching, PagedAttention, and Multi-Token Prediction (MTP)

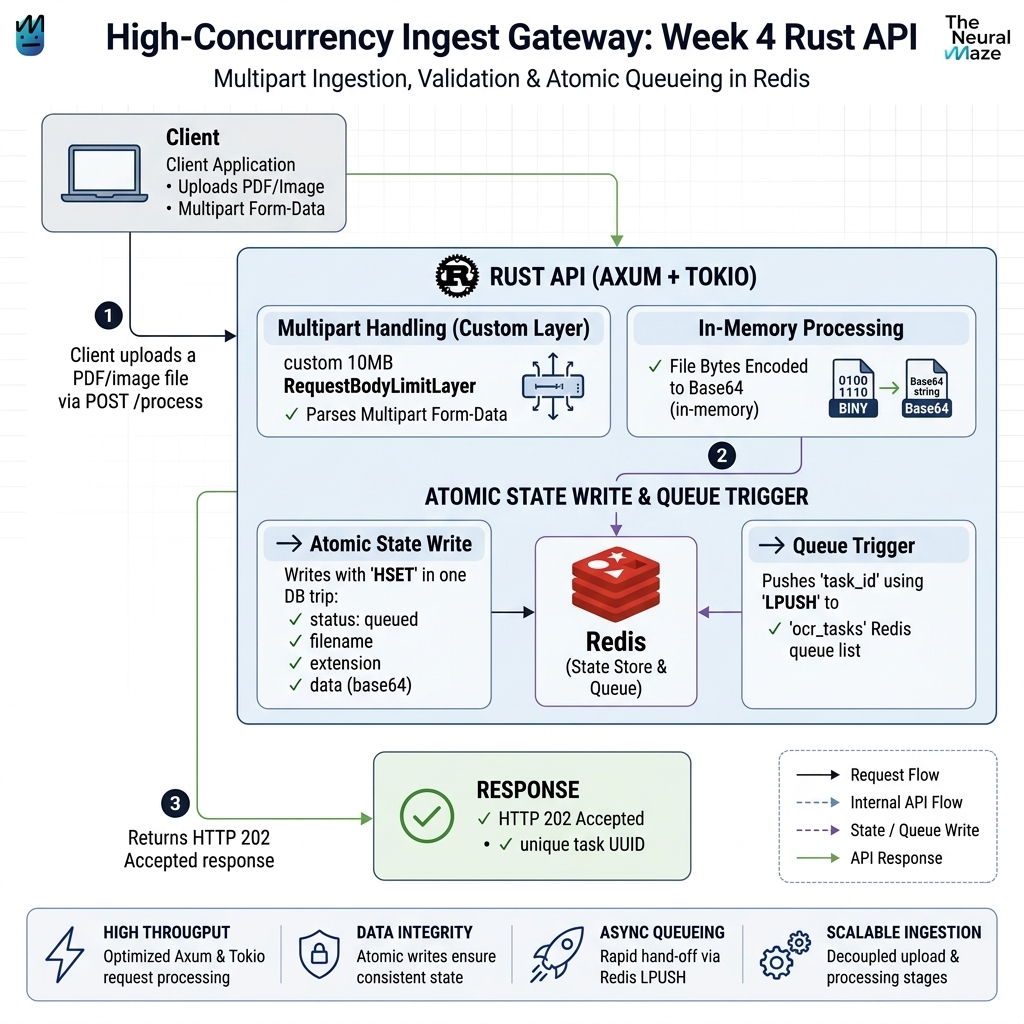

• 🦀 Ingesting files through a high-concurrency Rust (Axum) gateway, decoupled from GPU inference via Redis
• 🔄 Running a zero-copy, /dev/shm-based document handoff between the layout encoder and the inference engine

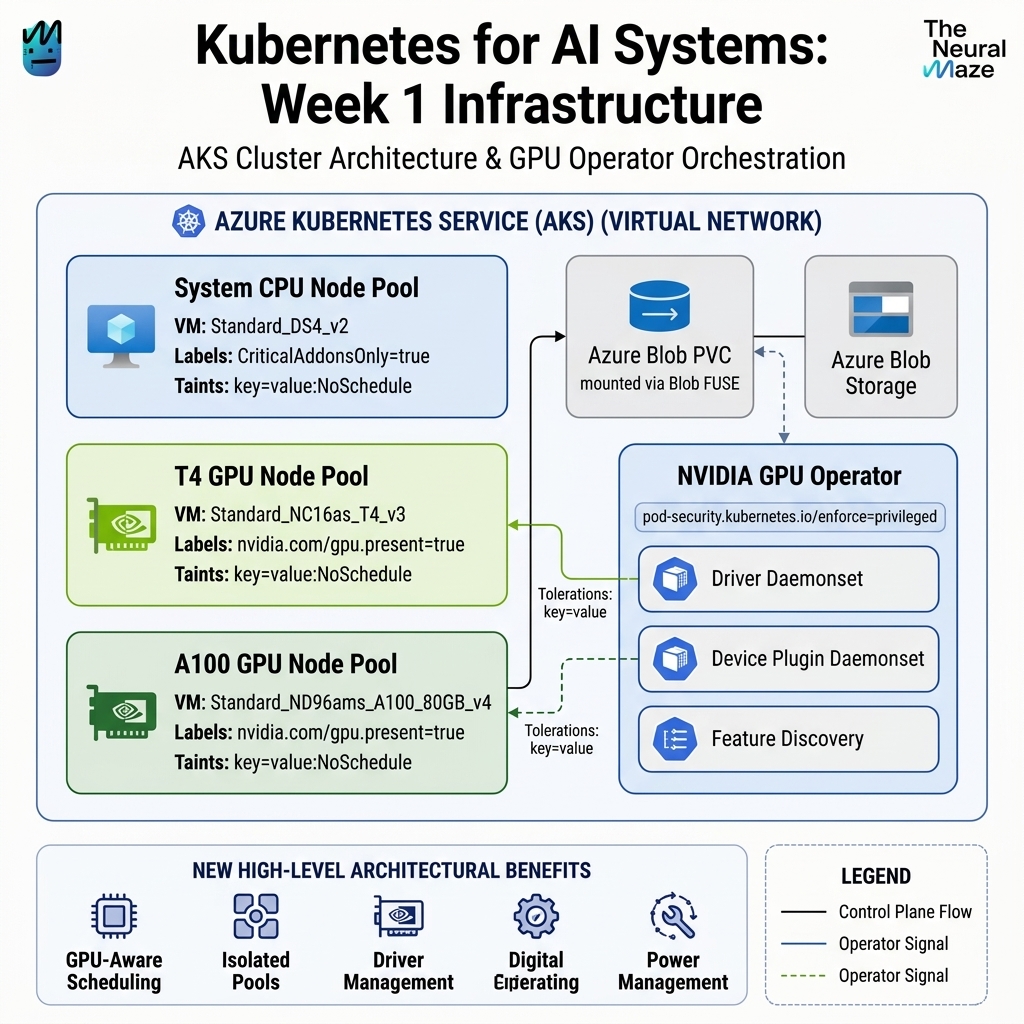

• ☸️ Auto-scaling T4 (layout) and A100 (inference) node pools independently with KEDA, from zero to bursting load
• 🔒 Locking the whole pipeline behind an Internal Load Balancer + Enterprise API Gateway (Azure APIM / GCP API Gateway), with zero public exposure
• 🤖 Wrapping the pipeline as an MCP server for native use by AI agents, including Claude Code

Excited? Let's get started!

📬 Stay Updated Join The Neural Maze and learn to build AI Systems that actually work, from principles to production. Every Wednesday, directly to your inbox. Don't miss out!

This course is for ML/AI Engineers and Platform Engineers who already know how to call an OCR API and want to know what it takes to run one in production: GPU node pools, autoscaling economics, network security, and the systems-design tradeoffs behind serving a generative model at throughput.

We run this as a 6-week hands-on engineering cohort. The entire repository is open-source from day one — every week combines a deep-dive systems article with a step-by-step codebase walkthrough.

• 📘 Weekly Production Article (Wednesday): Architectural deep dives, systems design math, and codebase explanations.
• 🎙️ Live Office Hours (Friday): Live coding, cluster provisioning, load-testing, scaling demonstration, and Q&A.

Start with account setup, then GPU quota, then the full deployment guide for your cloud of choice:

1. Create your cloud account & claim free credits
   • 🔵 Azure Account Setup — the course's primary cloud
   • 🟢 GCP Account Setup — optional, if you'd rather run on Google Cloud
2. Request GPU quota (T4 + A100 — this is the step most people get stuck on; free/trial accounts cannot run GPUs)
   • 🔵 Azure GPU Access & Quota Prerequisites
   • 🟢 GCP GPU Access & Quota Prerequisites
3. Deploy the pipeline
   • 📘 Azure Kubernetes Service (AKS) Deployment Guide
   • 📗 Google Kubernetes Engine (GKE) Deployment Guide
   • ☁️ Cloud Provider Comparison & Discrepancies Matrix

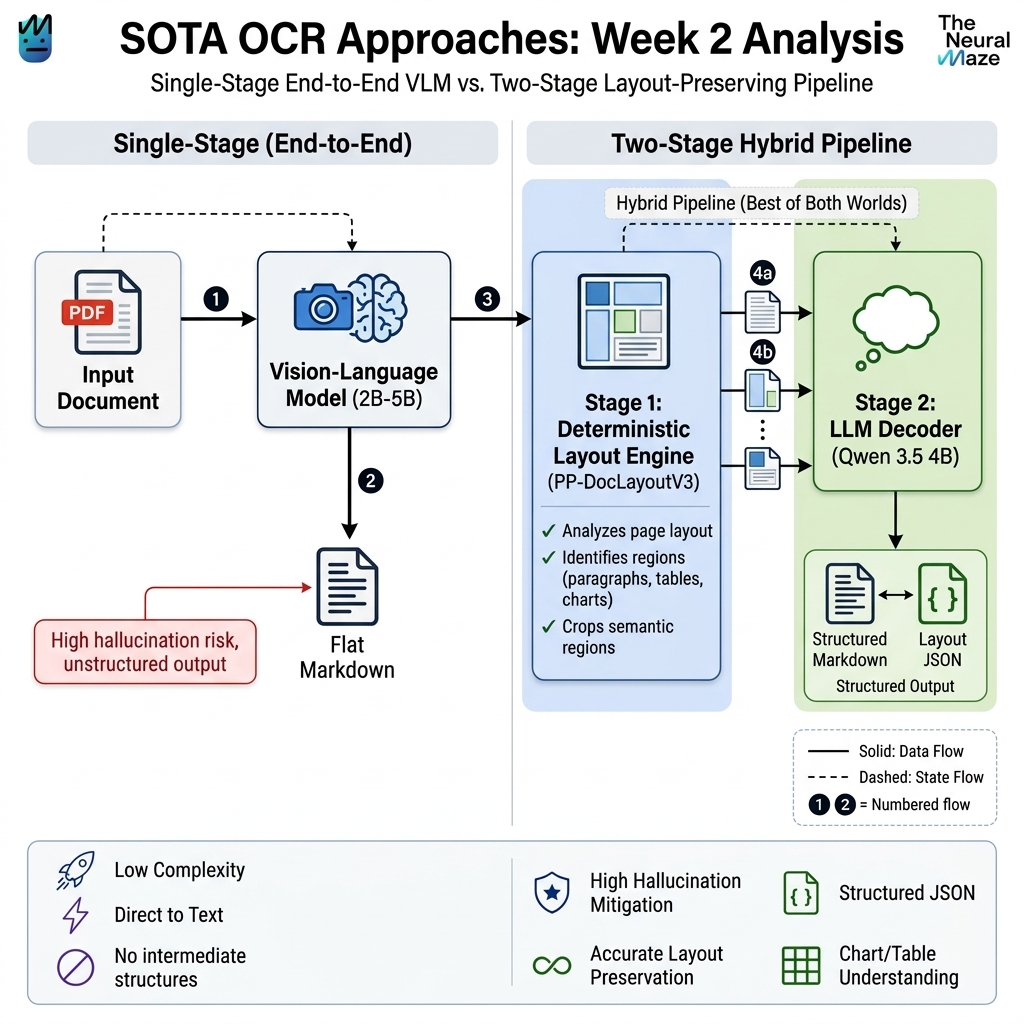

Modern OCR has evolved from simple character recognition to Visual Document Understanding (VDU). By leveraging Small Language Models (SLMs) like Qwen 3.5 (4B), this pipeline moves beyond "flat" text extraction to provide:

• Fine-Grained Chart & Image Description: Unlike task-specific models that only see text, Qwen 3.5 can interpret trends in graphs, describe complex diagrams, and identify semantic relationships between visual elements.
• Contextual Reasoning: The model understands the intent of a document. It can distinguish between an invoice total and a line-item subtotal based on spatial reasoning, not just keyword matching.
• High-Density Recognition: Achieving state-of-the-art results on benchmarks like OmniDocBench, these models handle "noisy" real-world inputs—handwriting, annotations, low-resolution scans—with a record-breaking accuracy that outperforms much larger frontier models.

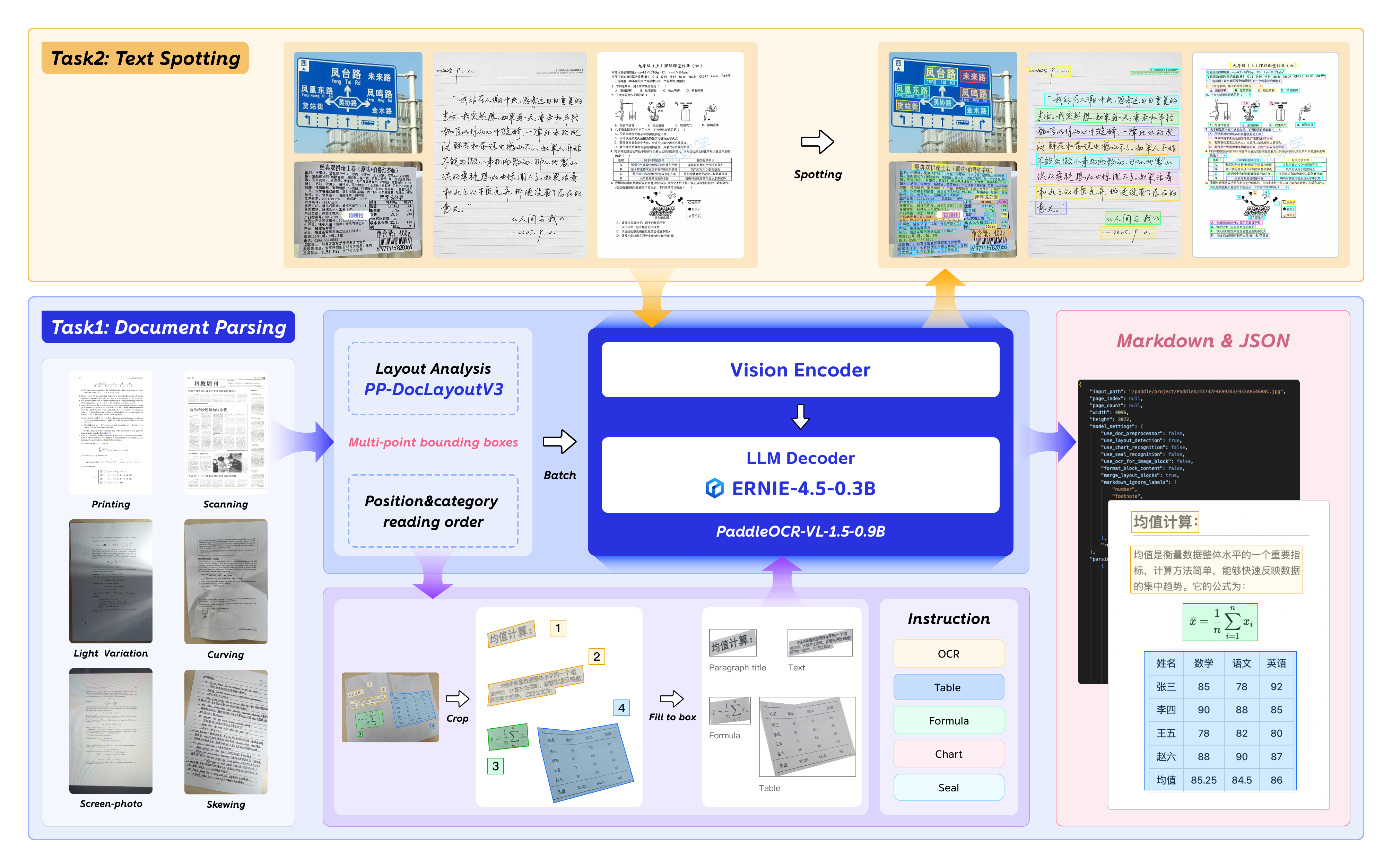

• Hybrid Orchestration: Combines a deterministic PP-DocLayoutV3 visual encoder (via GLM-OCR SDK) with the Qwen 3.5 language decoder. This ensures that every image crop is semantically labeled before it hits the generative engine.
• Multi-Token Prediction (MTP): The architecture is optimized for MTP-enabled VLMs, resulting in a ~50% throughput increase by predicting multiple tokens per decoding step without increasing VRAM overhead.
• Zero-Copy RAM Handoff: Documents are rasterized into /dev/shm (Shared Memory), allowing the layout engine and the inference engine to share high-resolution buffers without costly disk I/O.

The architecture leverages the GLM-OCR SDK as a high-concurrency orchestration layer to bridge the gap between deterministic layout analysis and generative SLM recognition.

By deploying models via vLLM, we leverage continuous batching and PagedAttention to maximize the A100's utility.

• MTP Speed Hack: Because vLLM supports Multi-Token Prediction (MTP), the generative stage is significantly faster than traditional VLMs, reaching throughputs of 1.86 pages/second for PDFs.
• Two-Stage Parallelism: While the vLLM sidecar handles the intensive recognition of Batch N, the Orchestrator/Layout pod is already pre-processing Batch N+1 using the PP-DocLayoutV3 detector.
• Dynamic Cropping: The system doesn't feed full-page images into the SLM (which is token-expensive). Instead, it crops semantic regions (paragraphs, tables, formulas, charts), allowing the model to focus its parameters on high-density information.

To maximize the ROI of the A100 nodes, the system is tuned to balance the asymmetric load between CPU-bound preprocessing and GPU-bound inference.

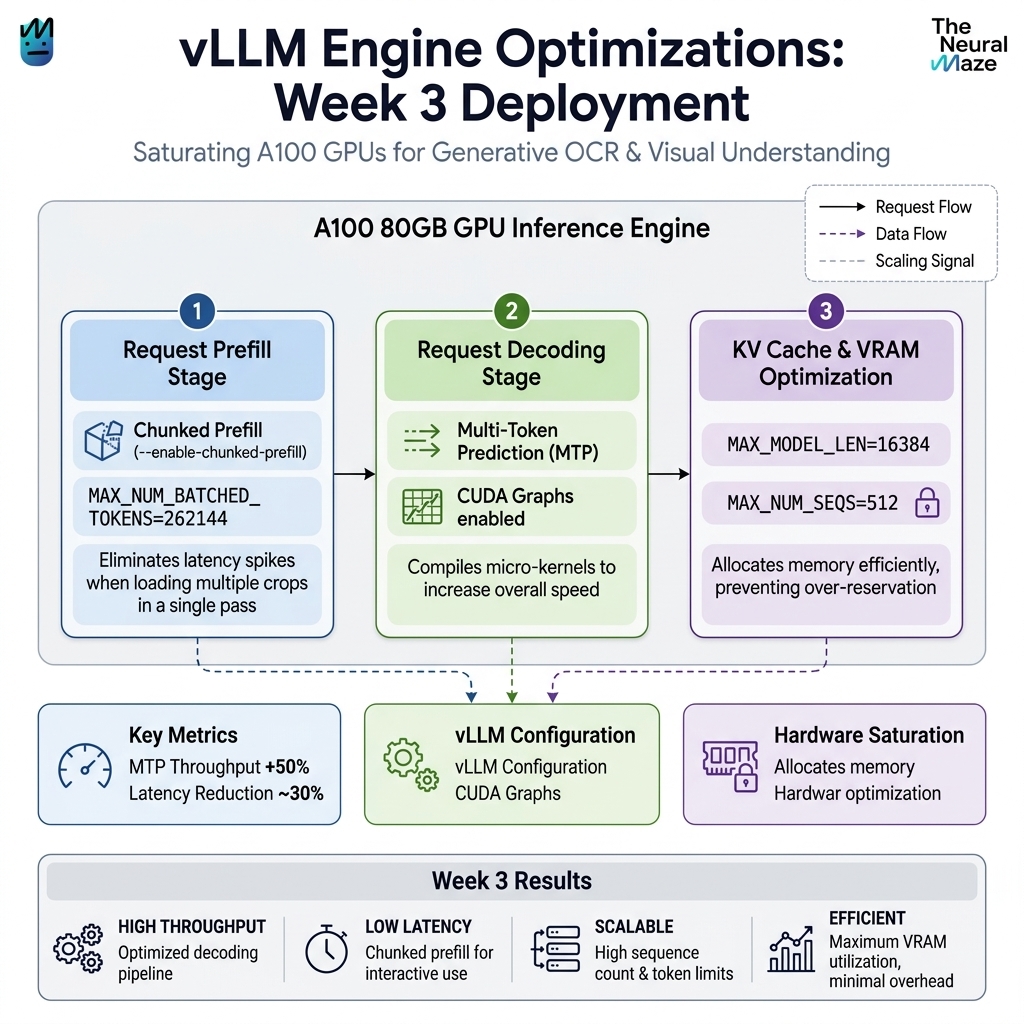

To fully utilize the massive 80GB VRAM of the A100 node for models like Qwen3.5-4B, we aggressively tune the internal parameters of the vLLM engine:

• MAX_NUM_SEQS=512: Increased from default to allow the vLLM continuous batching scheduler to process up to 512 concurrent image crops or text completions in parallel.
• MAX_NUM_BATCHED_TOKENS=262144: Massively increased to eliminate the "prefill bottleneck". Because each layout crop contains ~6K tokens, a standard batch size limits prefilling to only ~5 crops at a time. By pushing this to 262K, the engine can prefill ~42 images simultaneously in a single forward pass.
• MAX_MODEL_LEN=16384: Explicitly reduced from 32K. Setting this to 16K perfectly covers the worst-case scenario (6K image + 8K generation) while preventing overly pessimistic reservations. This frees up gigabytes of VRAM to physically accommodate the 512 sequences.
• Chunked Prefill Enabled (--enable-chunked-prefill): Prevents large prefill tasks from blocking decoding steps of currently running requests. By chunking prefills and co-scheduling them with decoding tokens, the engine guarantees lower latency spikes under heavy concurrent workloads.
• CUDA Graphs Enabled (No --enforce-eager): Critical for Multi-Token Prediction (MTP). We allow vLLM to compile CUDA graphs during cold-start. This eliminates the massive CPU bottleneck caused by dispatching thousands of micro-kernels per generation step.

Colocating the SDK worker and vLLM across T4 (Layout) and A100 (OCR) node pools allows for optimized resource utilization. The system uses a Sequential Dynamic Batching strategy to saturate the GPU without causing kernel contention.

• Sequential Batching: The worker collects tasks from Redis and dispatches them to the GlmOcr engine in batches. It waits for the entire batch to complete before fetching more, preventing T4 VRAM over-contention and ensuring stable throughput.
• Shared Memory: Using /dev/shm, the worker renders documents into RAM. The SDK reads directly from this RAM disk, eliminating disk I/O bottlenecks during high-concurrency bursts.
• Aggressive Scaling: KEDA is configured for Scale-on-Single-Task (T4) and Scale-on-Waiting-Request (A100), ensuring the cluster spins up resources immediately as demand arrives.

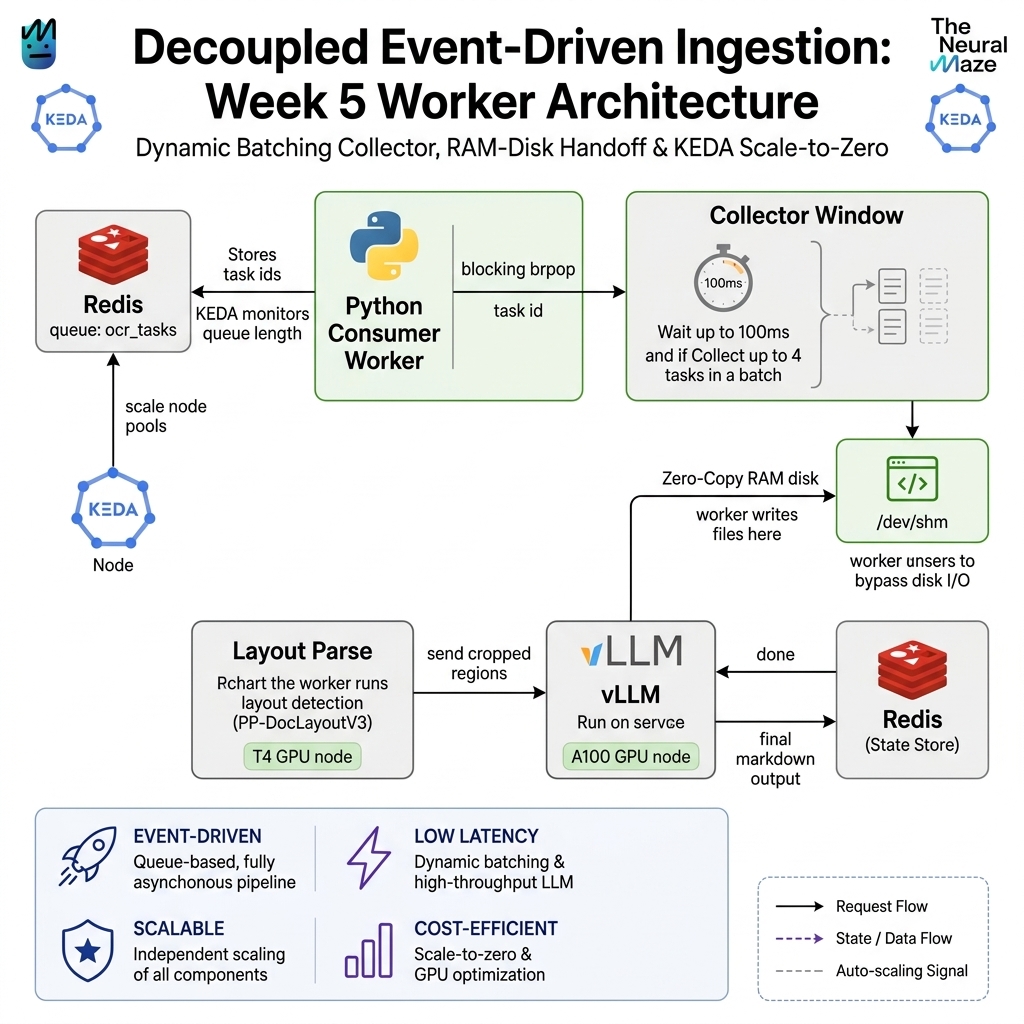

This workflow is specifically designed for low-latency tool use by AI Agents. It decouples the API from the GPU-heavy inference through a Redis state store.

Step-by-Step Execution:

1. Submission: An AI Agent sends a PDF/Image to the Producer API.
2. Queuing: The API generates a task_id, stores the file as base64 in Redis, and pushes the ID to an ocr_tasks list.
3. Activation (KEDA): KEDA monitors the ocr_tasks list length and the API CPU usage. It scales the Producer API, Consumer Worker and vLLM Server nodes.
4. Dynamic Batching (Collector Pattern): The Consumer Worker pops a task_id, then waits up to 100ms to collect up to 4 tasks from the queue. This ensures that the T4 GPU processes layout detection in batches, maximizing throughput.
5. Layout Analysis: The Worker decodes the batch into /dev/shm and runs PP-DocLayoutV3 (T4 GPU) to identify semantic regions for all files in the batch.
6. Inference: The Worker sends recognized regions to the vLLM Server (A100 GPU) for high-speed transcription.
7. Resolution: The Worker updates the Redis task status to done and stores the final Markdown/JSON.
8. Retrieval: The AI Agent polls the status endpoint; once done, it retrieves the structured result instantly from Redis memory.

• The layout detector acts as a pre-input encoder that delimits semantic regions (text, tables, figures, formulas) and their orientation before generative inference. This narrows the VLM's decision space and reduces visual noise (skew/warp/lighting), mitigating hallucinations typical of generative models.
• Robust and irregular localization in GLM-OCR (powered by PP-DocLayoutV3) increases the quality of the crop consumed by the VLM in real-world scenarios (scans, mobile photos, etc.). [HuggingFace: GLM-OCR]

To ensure high-throughput and minimize network overhead, this pipeline uses a Shared RAM-disk (/dev/shm) for document handoff. This strategy is specifically optimized for the GLM-OCR SDK's ability to handle raw file paths.

Regardless of the input format (Single-page Image or Multi-page PDF), the worker follows a unified ingestion pattern:

1. Binary Download: The worker downloads the raw blob bytes from Redis.
2. RAM-disk Write: The binary is saved as a temporary file in /dev/shm (Linux Shared Memory), preserving its original extension.
3. Permission Fix: The worker explicitly grants read access (0o644) to the file, ensuring that the SDK's internal sub-processes can read the file regardless of their UID.
4. SDK Handoff: The worker passes the local file path to ocr_engine.parse(temp_path).

The GLM-OCR SDK does not rely on manual "file type" flags. When it receives a file path:

• Identification: It reads the file's magic bytes (e.g., %PDF- for PDFs, \xFF\xD8 for JPEGs).
• Routing:
  • PDF Pipeline: Triggers the internal PyMuPDF/pdf2image engine. It rasterizes the document into high-resolution images (based on the pdf_dpi config) before hitting the layout detector.
  • Image Pipeline: Directly loads the image array into memory for layout segmentation.

• Zero-Copy Communication: No base64 encoding/decoding is required to move 10MB+ images between the worker logic and the AI engine.
• Reduced Context Window Noise: By allowing the SDK to handle the PDF rasterization internally, the worker code remains clean and doesn't need to manage individual page buffers or rasterization libraries.
• Reliability: Using a RAM-disk ensures that even under high load, disk I/O wait times never bottleneck the GPU's inference cycles.

This deployment architecture is designed for top-tier quality and resilience in a production environment.

graph TD
    %% Node Pools
    subgraph "redisnp (CPU-High Mem)"
        Redis[(Redis State Store)]
    end

    subgraph "apinp (CPU-Optimized)"
        API[Rust Producer API]
    end

    subgraph "gpunpt4 (T4 GPU)"
        Worker[Python Consumer Worker
+ PP-DocLayoutV3]
    end

    subgraph "gpunpa100 (A100 GPU)"
        vLLM[vLLM Server
+ Qwen 3.5 4B]
    end

    %% External
    Agent([AI Agent / Client])

    %% Connections
    Agent -- "1. POST /process (File)" --> API
    API -- "2. Push task_id + Data" --> Redis
    Worker -- "3. Collector: Fetch Batch" --> Redis
    Worker -- "4. Detect Layout (Local GPU)" --> Worker
    Worker -- "5. POST /v1/chat/completions" --> vLLM
    vLLM -- "6. OCR Results" --> Worker
    Worker -- "7. Update task (Status: done)" --> Redis
    Agent -- "8. GET /status/{task_id}" --> API
    API -- "9. Fetch Result" --> Redis

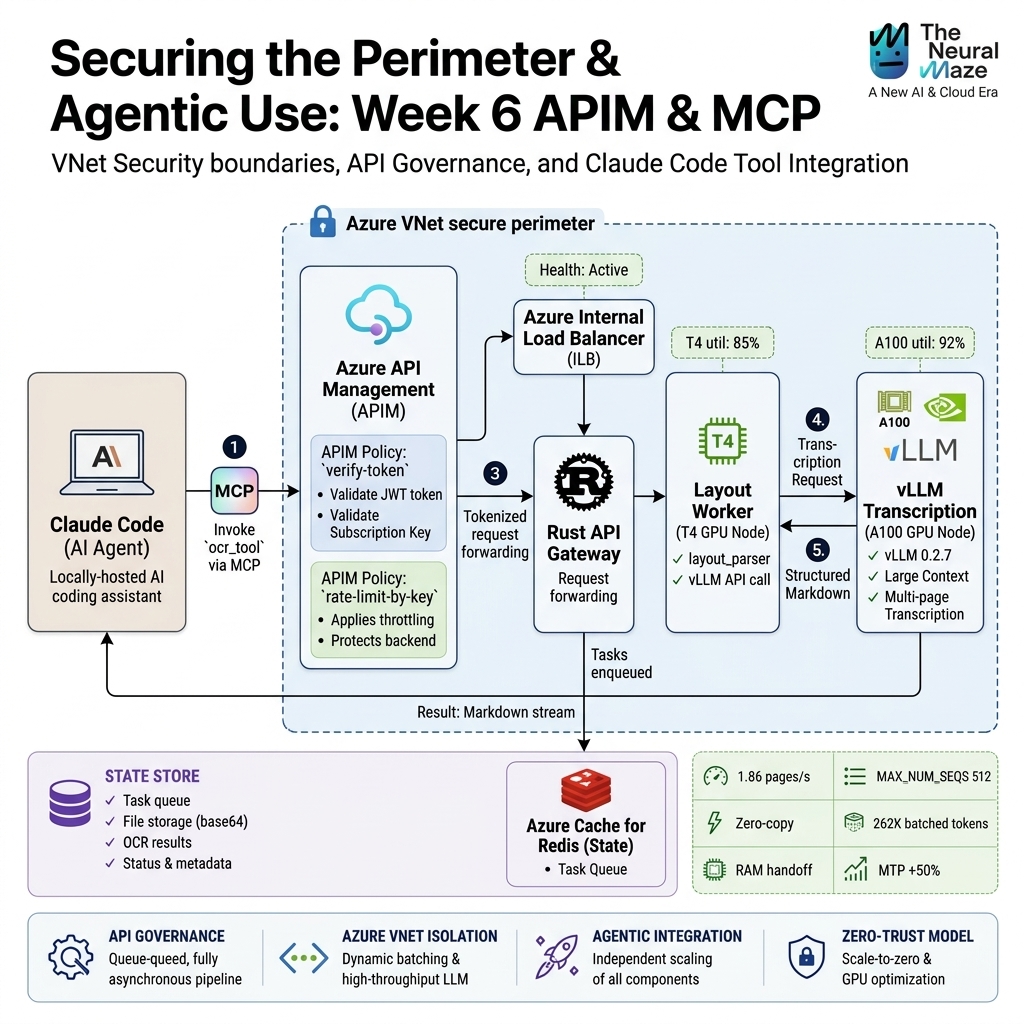

For enterprise deployments, exposing the Rust Producer API directly to the public internet is a critical security and cost risk (e.g., unauthorized access triggering expensive GPU auto-scaling).

To prevent this, the deployment architecture is designed around strict network boundary controls:

1. Internal Load Balancer (ILB): The Kubernetes service (ocr-api-service) is annotated to provision an Internal Load Balancer within the cloud virtual network (Azure VNet / GCP VPC), assigning it a private IP. This ensures the Rust Producer API is never directly reachable from the public internet.
2. Enterprise API Gateway (Azure APIM / GCP API Gateway / Apigee):
   • The Gateway is deployed in Internal Virtual Network Mode (or private backend integration) within the same virtual network. This ensures the gateway itself has no unprotected public internet footprint.
   • Traffic can only reach the gateway via secure channels such as VNet/VPC Peering, VPN Gateway, or ExpressRoute/Interconnect from corporate networks.
3. Alternative: External Gateway Mode with Strict Governance Policies:
   • If clients must access it from the internet, the gateway can be configured in External Mode to act as a secure, public-facing entry point.
   • Public access is strictly guarded by Subscription Key (API Key) checks, Entra ID / GCP IAM (JWT) tokens, and IP Whitelisting.
   • Rate Limiting (Throttling) policies protect backend GPU resources (vLLM and worker pods) from DDoS or burst misuse, preventing runaway autoscaling costs.

For the real-time API, we use an aggressive, low-latency scaling strategy that ensures resources are provisioned the moment a task enters the pipeline:

• Warm Start (Cron): Maintains at least 1 replica of both T4 (Layout) and A100 (OCR) during business hours (08:00 - 18:00 ET) to eliminate cold-start latency for the first request of the day.
• Aggressive Bursting (KEDA & Prometheus):
  • API Gateway: Scales on CPU Utilization > 70%. Ensures that the Rust API can handle high-concurrency bursts of file uploads.
  • T4 (Layout): Scales on Redis List Length = 1. Because our worker now uses Sequential Dynamic Batching, we want to spin up a new T4 node for every pending task in the queue to ensure that even if one worker is currently busy with a batch, the next task doesn't wait.
  • A100 (OCR): Scales when vLLM Waiting Requests >= 1. We no longer wait for a queue depth of 5. If the vLLM scheduler has even a single region waiting for a KV-cache slot, KEDA triggers an immediate upscale of the A100 node pool.
• Fast Reallocation: Reduced Prometheus polling to 10s and cooldown to 300s, allowing the cluster to scale down faster when idle while remaining highly responsive to bursts.
