A diagnostic framework for detecting when multimodal search agents look correct but are not faithfully grounded in the image, retrieved evidence, or trajectory.

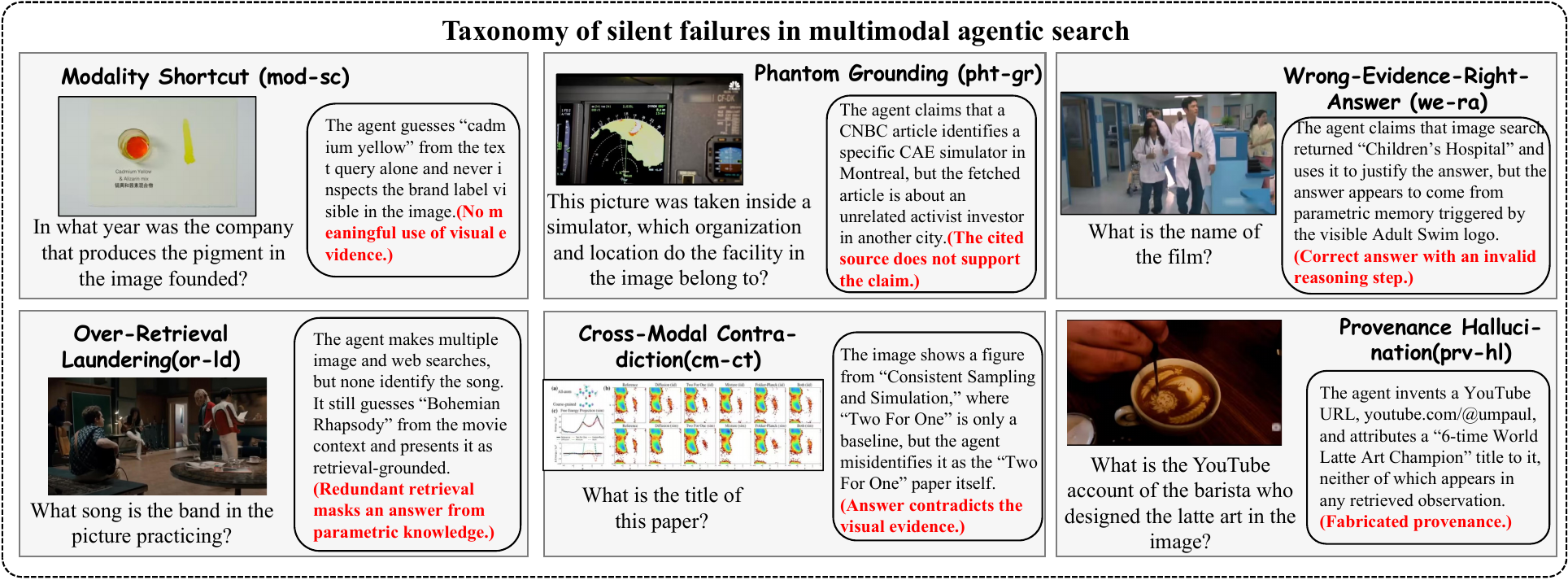

Main figure from the paper: a six-category taxonomy of silent failures in multimodal agentic search.
- Overview
- Highlights
- Silent-Failure Taxonomy
- Diagnostic Pipeline
- Results
- Figures and Video
- Repository Structure
- Installation
- Data Preparation
- Running the Pipeline
Multimodal agentic search systems are commonly evaluated by final-answer accuracy. That score can be misleading: an agent may output a plausible answer while ignoring the image, citing evidence that does not support its claim, contradicting visible content, or presenting parametric knowledge as retrieval-grounded reasoning.
This project studies those silent failures in multimodal agentic search. We run three frontier multimodal models under the same ReAct-style search scaffold, record full trajectories, label each trajectory with a structured LLM-judge rubric, and compare answer accuracy with true correctness rate (TCR).
This repository contains the diagnostic code. Dataset files, trajectories, labels, and result artifacts are not included.
- Six-category taxonomy for silent failures in multimodal agentic search.
- Trajectory-level diagnosis using full ReAct logs rather than final answers only.
- Cross-judge validation with same-family and cross-family LLM judges.
- Blank-image stress test to check whether correct answers survive image removal.
- Tool ablation showing that reverse-image-search improves accuracy but reshapes the failure surface.
| Category | Short name | What it captures |
|---|---|---|
| Modality Shortcut | MOD-SC |
The answer is reached without meaningful use of the image. |
| Phantom Grounding | PHT-GR |
The cited source does not support the claimed evidence. |
| Wrong-Evidence-Right-Answer | WE-RA |
The final answer is correct, but the reasoning path is invalid. |
| Over-Retrieval Laundering | OR-LD |
Many retrieval calls are used to decorate an answer that appears parametric. |
| Cross-Modal Contradiction | CM-CT |
The answer follows text retrieval but contradicts the image. |
| Provenance Hallucination | PRV-HL |
URLs, dates, sources, or provenance details are invented. |
Each (task, model) pair produces one structured trajectory. The primary judge receives the original task, input image, ground-truth answer, and full trajectory, then returns answer correctness plus six category-level labels.
| Model | N | Accuracy | TCR | Silent failure among correct |
|---|---|---|---|---|
| Claude Sonnet 4.6 | 200 | 25.0 | 24.0 | 4.0% |
| Gemini 2.5 Pro | 200 | 21.5 | 19.0 | 11.6% |
| GPT-4o | 200 | 20.0 | 19.5 | 2.5% |
| Model | MOD-SC |
PHT-GR |
WE-RA |
OR-LD |
CM-CT |
PRV-HL |
|---|---|---|---|---|---|---|
| Claude Sonnet 4.6 | 5.1 | 21.3 | 0.7 | 10.3 | 30.9 | 0.7 |
| Gemini 2.5 Pro | 0.8 | 33.8 | 1.5 | 13.5 | 38.3 | 4.5 |
| GPT-4o | 7.4 | 27.4 | 0.0 | 9.1 | 37.1 | 0.6 |

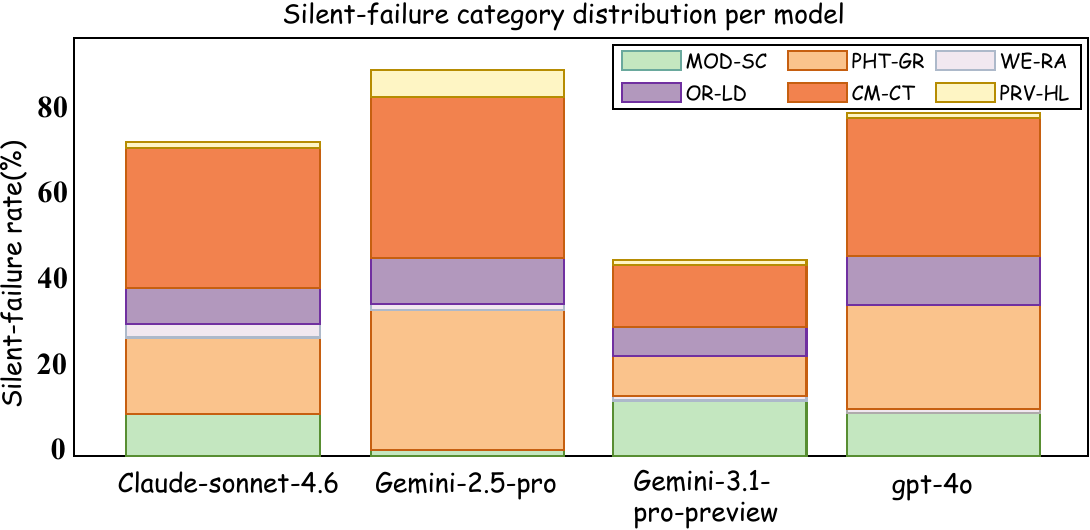

Silent-failure rates per category on the committed subset. A single trajectory can contribute to multiple categories.
- TCR is lower than surface accuracy across all three evaluated models.
- Blank-image survival is 0/133: no originally correct trajectory remains correct after replacing the image with a blank image.
- Answer-correctness judge agreement is strong: Cohen's kappa is 0.916 within the Claude family and 0.817 across Claude/GPT-4o.
- Category-level judge agreement is weaker, especially across model families.
- Reverse-image-search improves committed accuracy by 13.9 to 18.9 points, while shifting failures toward phantom grounding and cross-modal contradiction.
| Artifact | Link |
|---|---|
| Paper | arXiv:2607.19793 |
| Main figure | assets/main_figure.png |
| Result figure | assets/fig2.png |
| Pipeline figure | assets/pipeline.png |
| Oral video | YouTube |
.
├── code/
│ ├── agents/
│ │ ├── llm_client.py # MatrixLLM-compatible model client
│ │ ├── react_agent.py # ReAct loop and trajectory logging
│ │ └── tools.py # Search, fetch, image, and crop tools
│ ├── judges/
│ │ ├── rubric.md # Silent-failure rubric
│ │ └── run_judge.py # Per-trajectory judge runner
│ ├── analysis/
│ │ ├── compute_metrics.py # Accuracy, TCR, SFR, agreement, figures
│ │ ├── analyze_shortcut.py # Blank-image stress-test analysis
│ │ └── v1_vs_v2.py # Reverse-image-search ablation
│ ├── run_agents.py # Main model rollout script
│ ├── run_judge_all.py # Batch judging script
│ └── smoke_test.py # Endpoint and one-step agent sanity check
├── requirements.txt
└── .env.example
Tested with Python 3.10+.
python3 -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt
cp .env.example .envFill in .env with your own keys:
MATRIXLLM_API_KEY=
SERPAPI_KEY=
TAVILY_API_KEY=
GOOGLE_API_KEY=
GOOGLE_CSE_ID=Prepare the MMSearch-Plus sample and place the generated files at the repository root:
data/
raw/
mmsearch_plus_sample.jsonl
images/
trajectories/
trajectories_blank/
annotations/
results/
The scripts expect the same directory layout used in the paper experiments. Large derived artifacts, including trajectories, judge labels, blank-image stress-test outputs, ablation artifacts, and final result tables, are not bundled in this repository.
python code/smoke_test.pypython code/run_agents.pypython code/run_judge_all.pypython code/analysis/compute_metrics.py
python code/analysis/analyze_shortcut.py
python code/analysis/v1_vs_v2.py
